Wi-Fi Inverter Window-Split Type Heat Pump Air-Conditioner (1 1/2HP)
CS-HZ12BWA
Suggested Retail Price HK$13,800
- Product Main Features and Advantages
- Equipped with nanoe®X Mark 3 Air Purifying System (Read more)
- Effectively inhibits 99.99% of bacteria and viruses (learn more)
- Effectively inhibits Allergens
- Approved by Sensitive Choice, which helps consumers worldwide live better with asthma and allergies
- Certified by German VDI 6022 for Allergy friendly
- Triple Air Purifying Technology

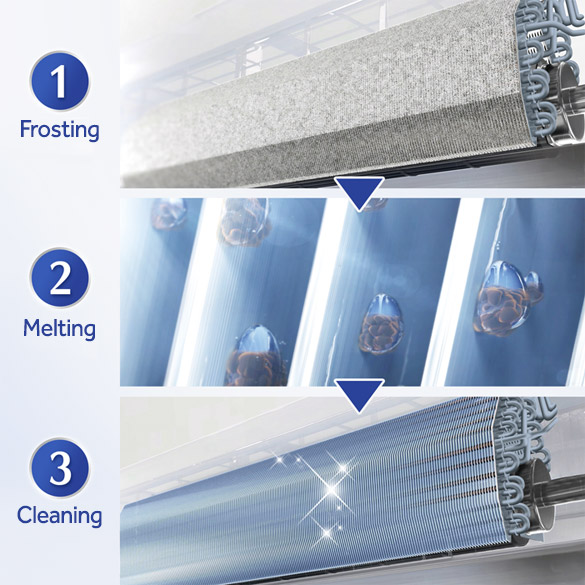

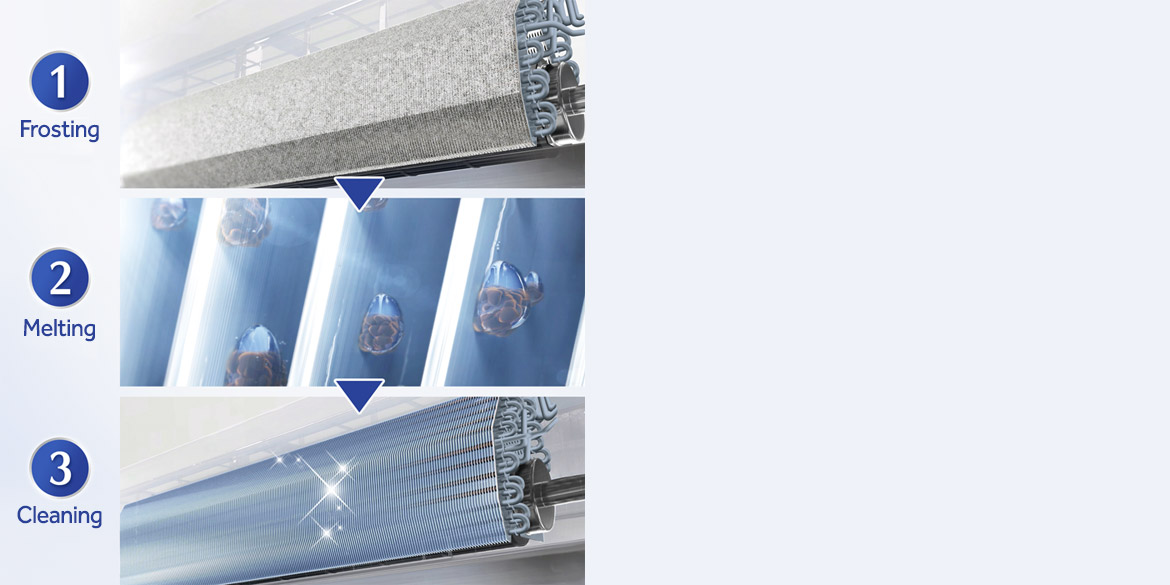

- Self-Cleaning**:When the unit is turned on, Indoor Unit will remove dust on the heat exchanger by frosting and melting
- nanoe®X: During unit's operation, the air purification system will help to improve indoor air quality

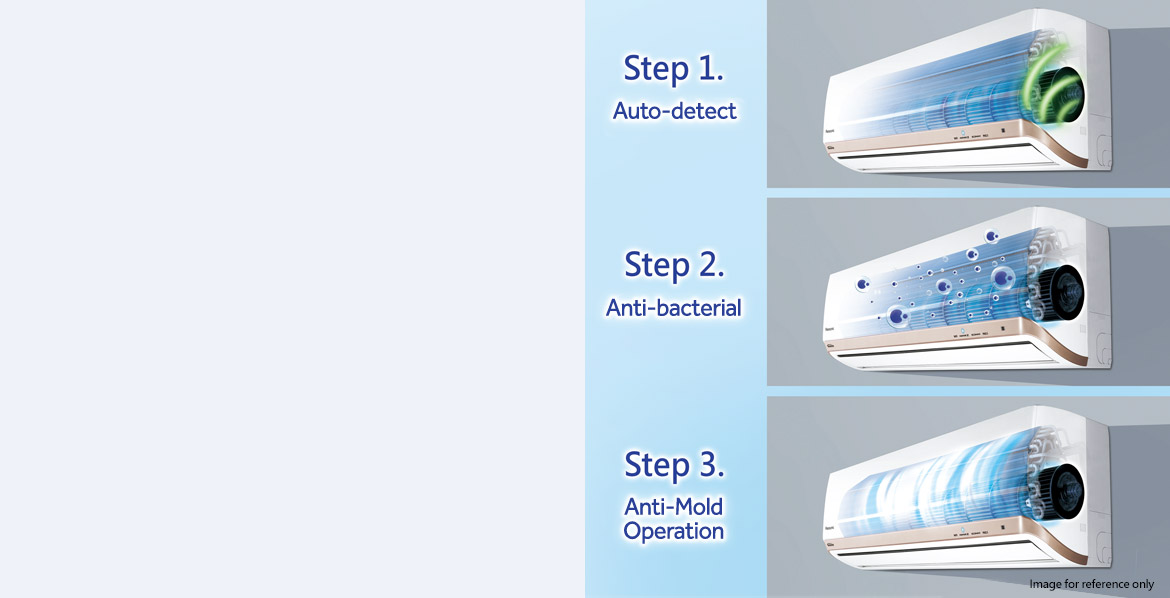

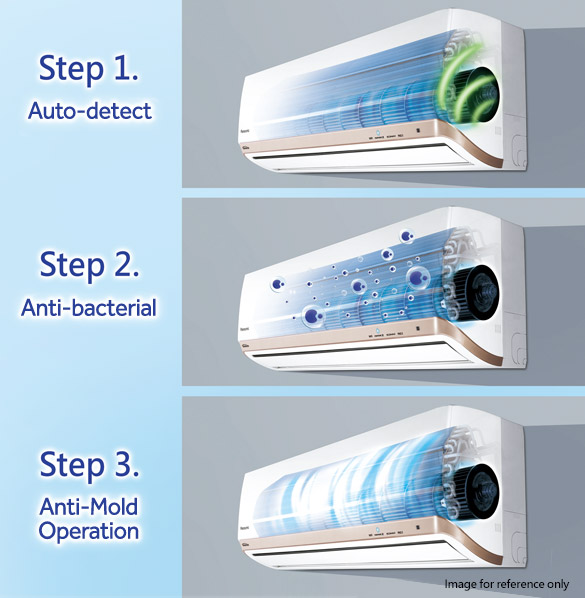

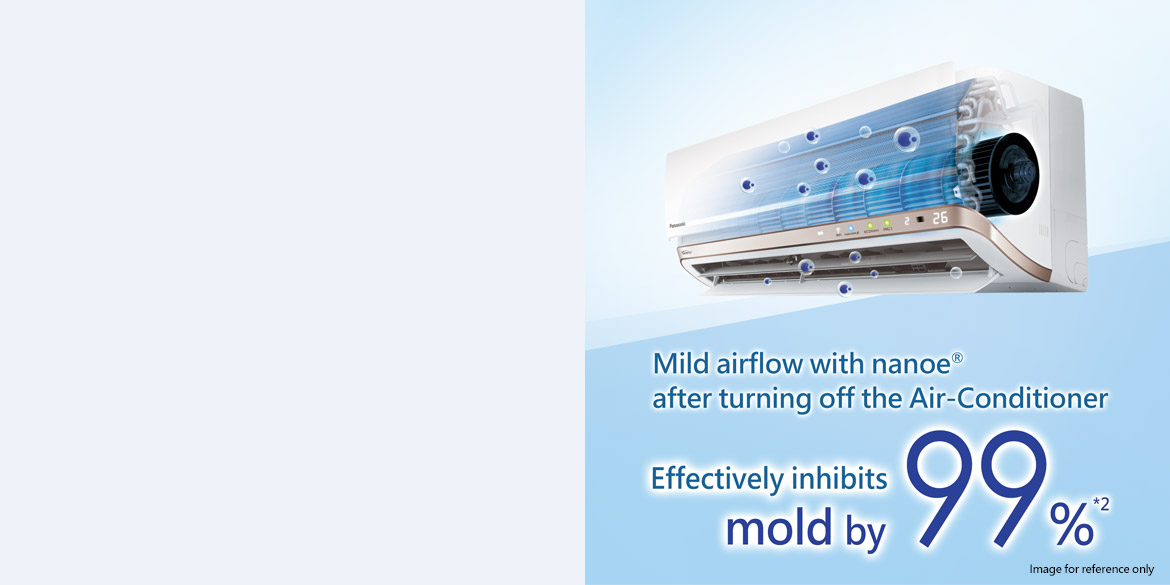

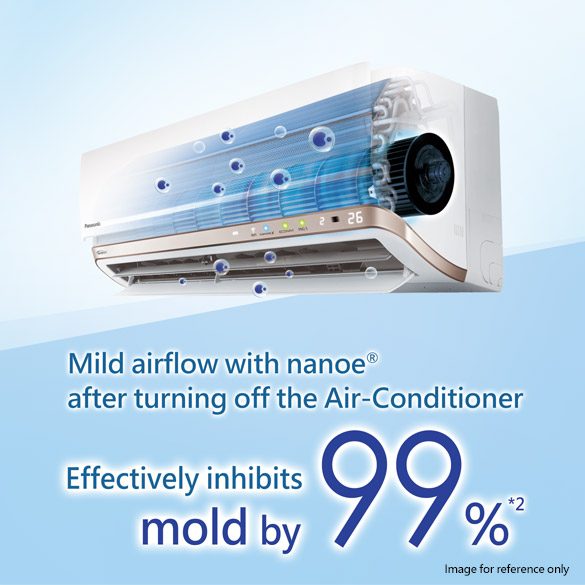

- Anti-Mildew: During anti-mildew operation, the front panel closes, nanoe® will be turned on and horizontal vane opens.

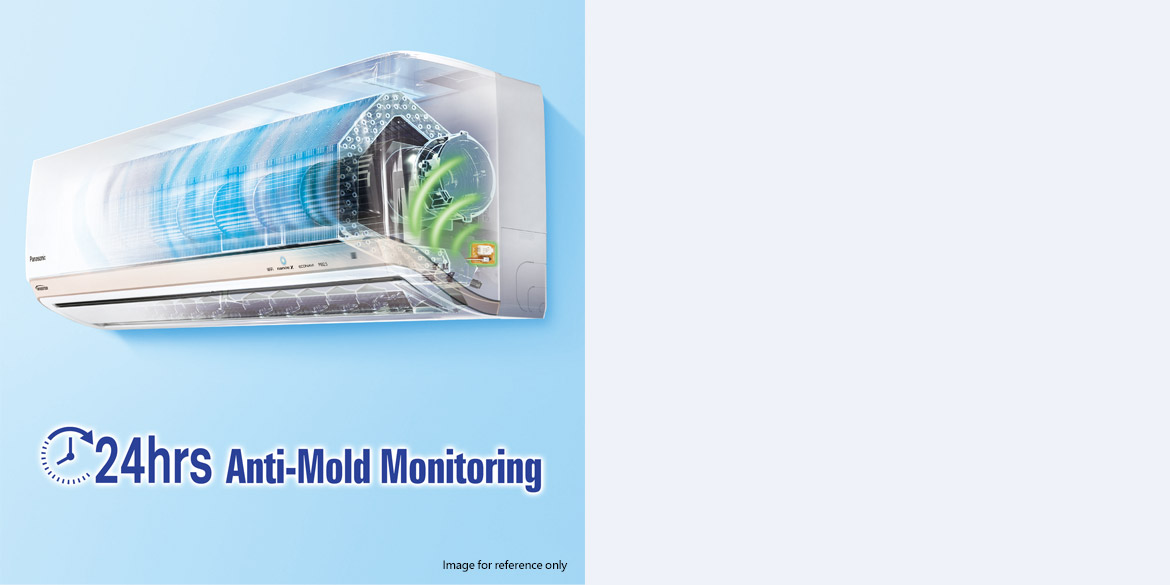

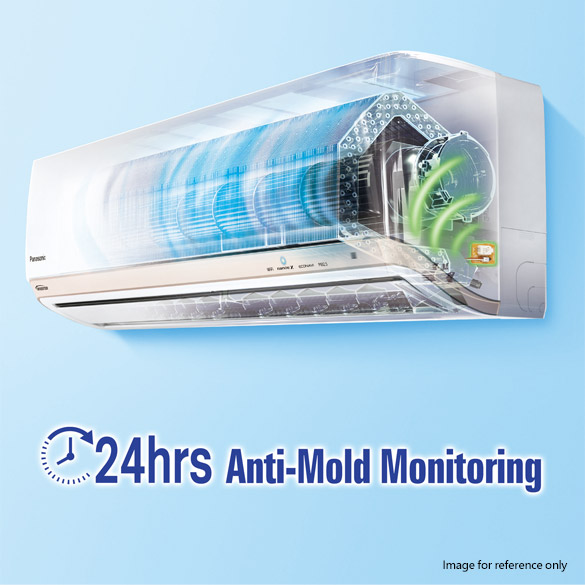

- Anti-Mold Monitoring
- Wi-Fi function, supported with Panasonic Comfort Cloud App*** (Read More)
- "Inverter" adjusts output power finely to maintain a constant temperature and conserve energy
- Environmental Friendly R32 Refrigerant
- Product Specification
- 1 1/2HP (Heat pump Model)
- 12,015 Btu/h
- Grade 1 Energy Label
- Warranty
- 1 year warranty: Entire unit
- 5 years warranty: Compressor
- Complimentary 1 year of Scaffolding Supporting Plan (Read More), starting from the purchase date of 1/7/2024 - 30/9/2025.
- Installation Reference
*Scaffolding may be required, depending on the installation environment.
**Self-Cleaning Function is for ensuring the cleanness of the heat exchanger, but not cleaning the filter.
***Currently only available in Hong Kong
Overview
nanoe® X is a patented ion technology developed by Panasonic. It is an electrostatic atomization technology that collects invisible moisture in the air and applies high voltage to it to produce "hydroxyl radicals contained in water". The decisive factor is the existence of hydroxyl radicals inside nanoe®X. Hydroxyl radicals are characterized by being strongly oxidative and highly reactive to inhibit a wide variety of air-pollutants, associated with the effect of skin and hair motorization, which provides the best quality of air to your family.
7 Effects
The negatively charged nanoe-G adheres with PM2.5, inhibit up to 99% PM2.5*1,bacteria and viruses(e.g., staphylococcus aureus*2, influenza [H1N1]*2, Escherichia coil phage*2)
nanoe-G ion generator releases negative ions.
Negative ions attach to dust particles.
The pollutants are being taken to the filter
*1FCG Research Institute lnc Test result *2Kitasato Research Center for Environmental Science test result
What is PM2.5?
PM 2.5 is know as particulate matter with size of less than 2.5 micrometers, which is one of the product of fossil fuel combustion. It is said to pose health problem as it can easily enter human lungs as it is smaller than bacteria.
Specifications
Wi-Fi Inverter Window-Split Type Heat Pump Air-Conditioner (1 1/2HP) | ||
|---|---|---|
| Living | ||
| Air-Conditioner | ||
| Outdoor | CU-HZ12BWA | |
| Inverter | ● | |
| Remote Control | ● | |
| Air-purifying System | nanoeX Mark 3+nanoe-G | |
| Cooling Capacity | ||
| Btu/h | 12,015 | |
| kW | 3.52 | |
| Heating Capacity | ||
| Btu/h | 12,015 | |
| kW | 3.52 | |
| EER | ||
| W/W | 3.43 | |
| Seasonal Performance Factor | ||
| Cooling Seasonal Performance Factor (CSPF) | 5.511 | |
| Heating Seasonal Performance Factor (HSPF) | 5.024 | |
| Power Supply | ||
| Voltage V | 220 | |
| Power Consumption A | Cooling Capacity：5.5; Heating Capacity: 5.3 | |
| Input Power kW | Cooling Capacity：1.025;Heating Capacity:1.041 | |
| Power Plug | 3-round-pin 15A plug | |
| Moisture Removal | ||
| L/h | 2.0 | |
| Air Circulation(Indoor / Hi) | ||
| m³/min. | 11.3 | |
| Indoor Unit Dimension(H x W x D) | ||
| mm | 315 x 820 x 245 | |
| Outdoor Unit Dimension(H x W x D) | ||
| mm | 385 x 548 x 471 | |
| Net Weight | ||
| Indoor Unit | 12 kg | |
| Outdoor | 25 kg | |
| Piping Diameter | ||
| Liquid mm / inch | ψ6.35 / 1/4" | |
| Gas mm / inch | ψ9.52 / 3/8" | |
| Power Supply | Indoor | |
